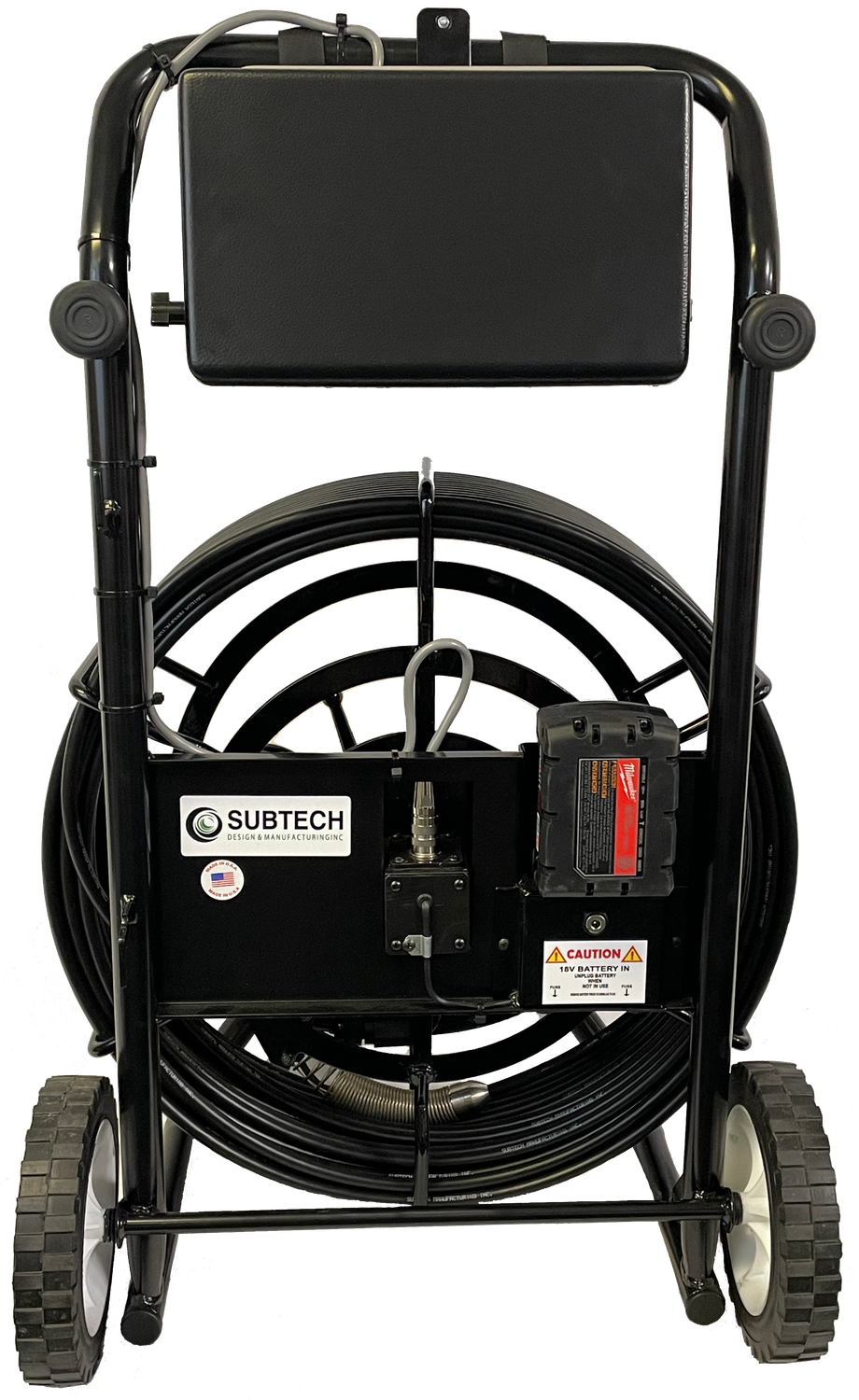

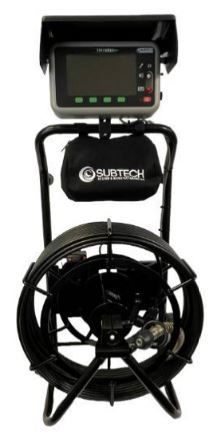

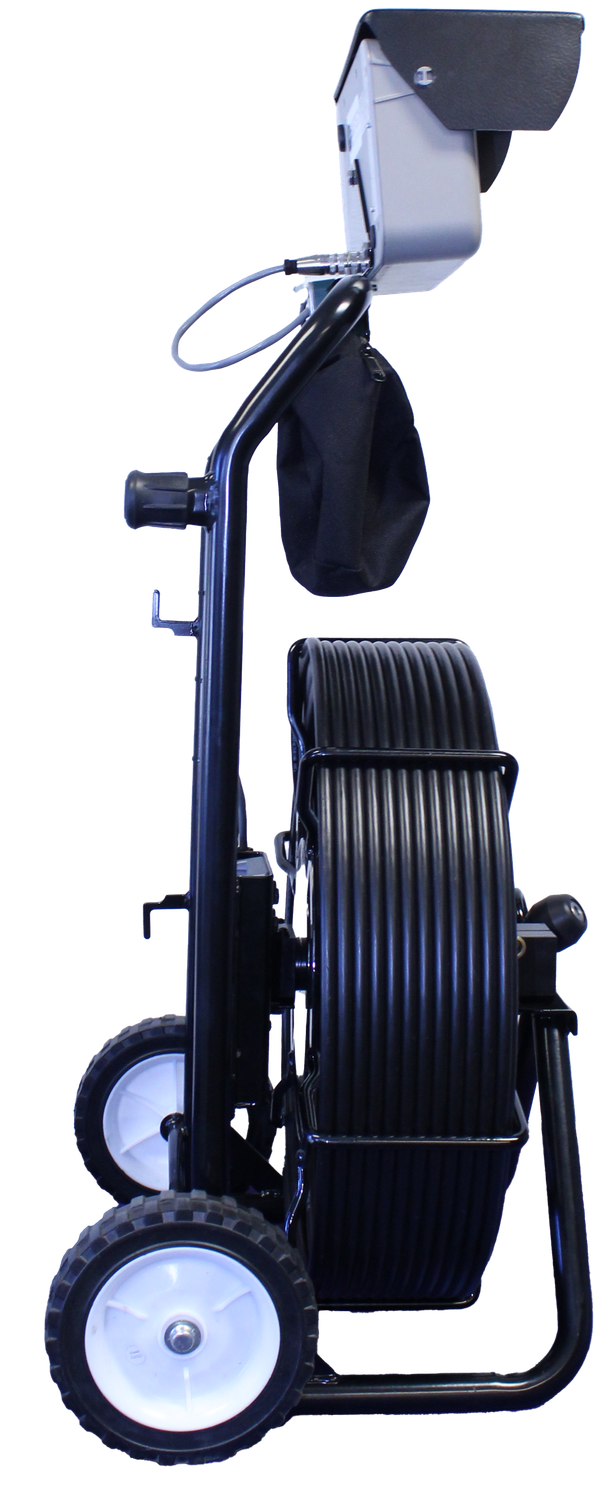

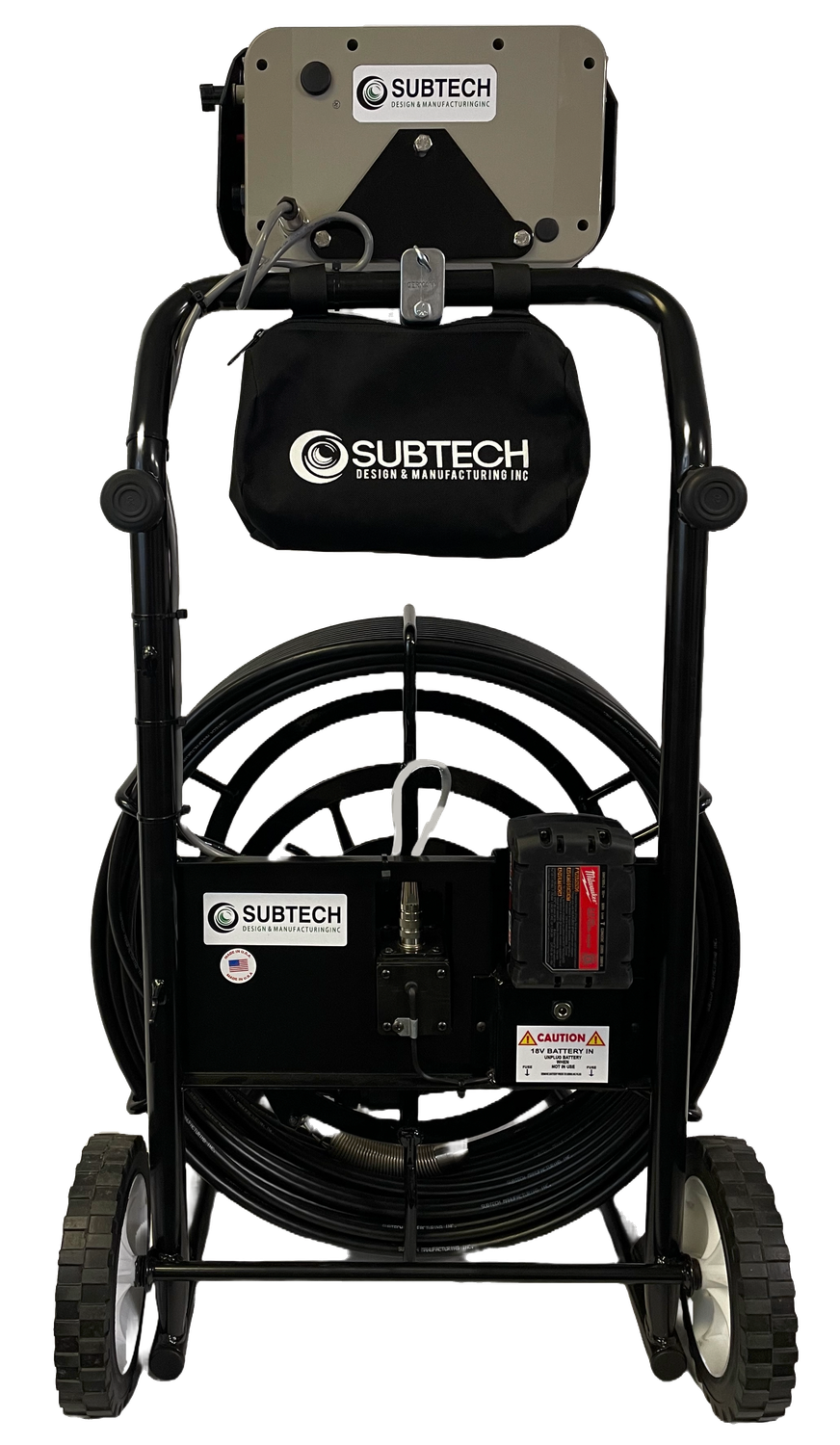

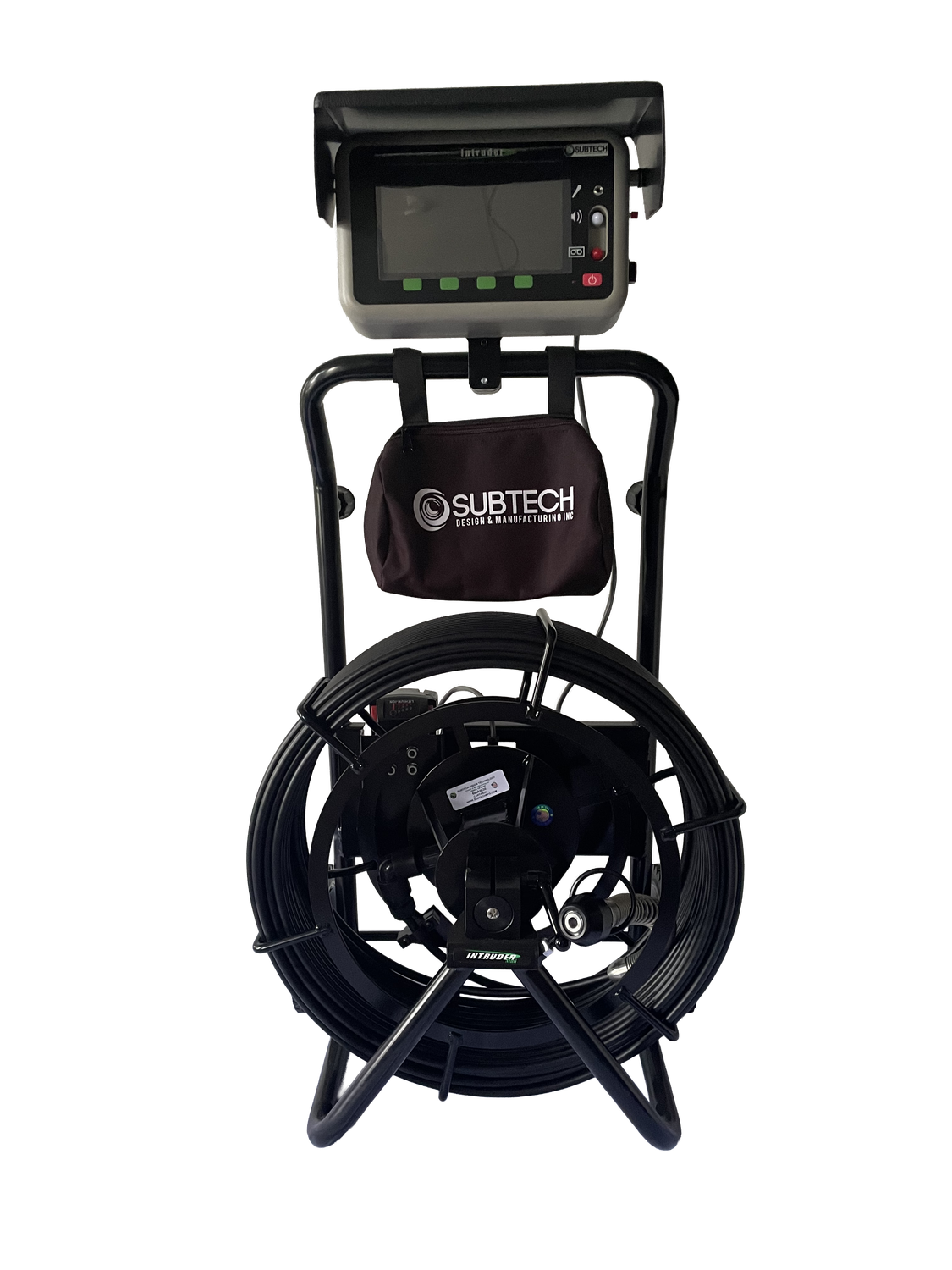

🔧 THE INTRUDER EXTENDED MINI
With Self-Leveling Camera and 200' of 10mm Push Cable

Extended Cart Height • Added Wheels • Field-Ready

Built for Demanding Jobs
A heavy-duty upgrade to our classic Mini system, designed for:
✔️ Professional Plumbers
✔️ Municipal Use
✔️ Extended Reach Inspections

Improved Mobility & Control
Extra height and rear wheels make transport easier, even in rough terrain or larger properties.

Self-Leveling Clarity
Stay oriented underground—our self-leveling camera keeps your view upright at all times.

📊 TECH SPECS
Line Capacity: 1.5″ to 6″
Max Distance: 200 ft. (61 m)
Depth Rating: 350 ft. (150 psi)
Resolution: 420 TVL
Pixels: 512 (H) × 492 (V)
Sensitivity: 0.3 Lux
Lighting: 16 High-Intensity White LEDs
Camera Head: 1.3″ × 2″ (33 mm × 50.8 mm)
Push Cable: 10 mm diameter
Video Format: NTSC
Power Input: 110V/60Hz AC, 12V DC
Temp Range: 14°F to 122°F (−10°C to 50°C)

🧩 Optional Upgrades
📡 Locator Receiver

🛠️ Subtech Vision Technology – Product Warranty
We proudly stand behind our equipment. All Subtech sewer cameras and leak detection tools include a:
1-Year Limited Warranty
✔ Covers manufacturing defects in materials and workmanship
✔ Does not cover misuse, accidental damage, damage to the push cable, or unauthorized repairs
✔ Shipping may or may not be covered, depending on the nature of the issue and final evaluation by our team
✔ Typical repair turnaround: under 48 hours at our California facility

To file a warranty claim:
Email us at info@subtechmfg.com or call (209) 531-9716. Have your serial number and proof of purchase ready.
