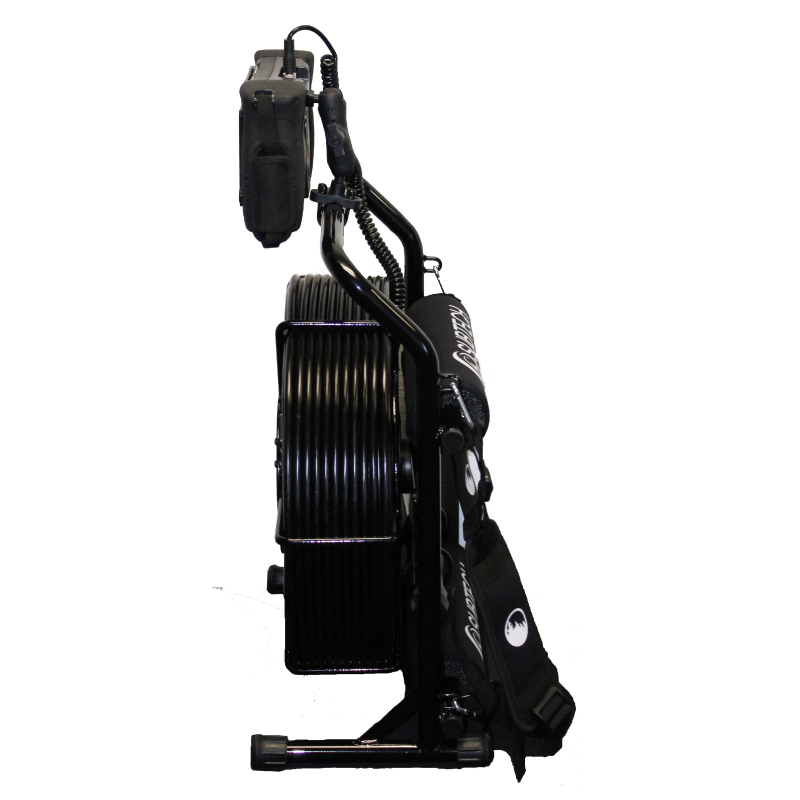

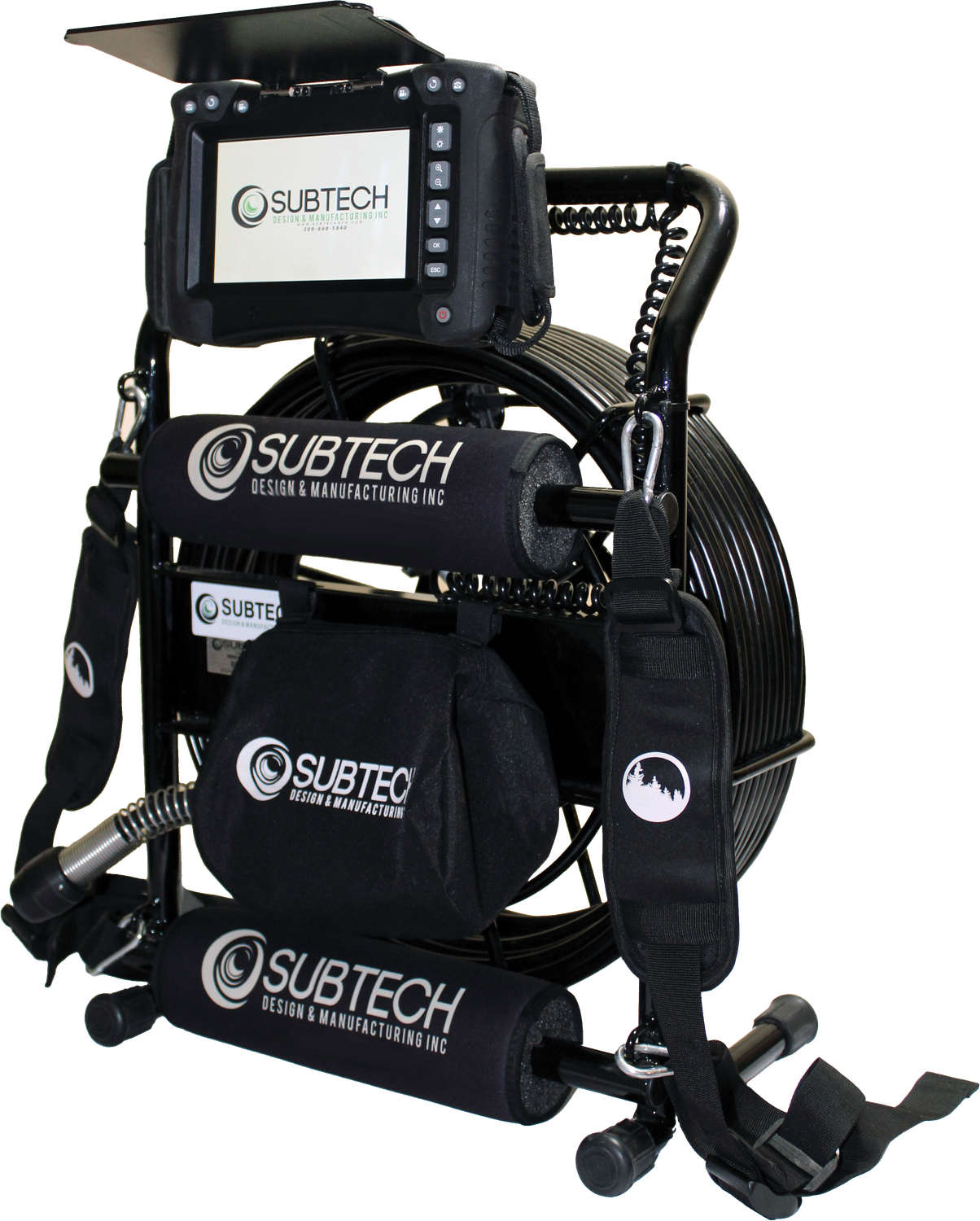

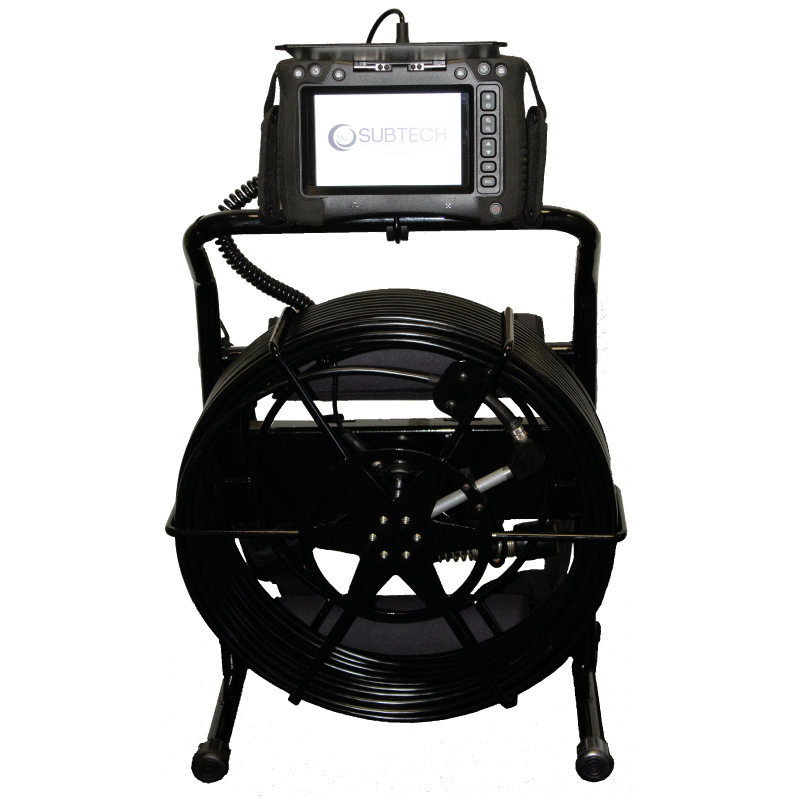

🔧 THE INTRUDER JUNIOR
With Self-Leveling Mini Camera
With choice of 120′, 140′ or 180′ of 10mm Push Cable

Modular • Field-Repairable • Built for the Field

Engineered for Pros
A compact, all-in-one camera system designed to meet the demands of:
✔️ Professional Plumbers
✔️ Home Inspectors
✔️ Municipalities

Portable & Rugged

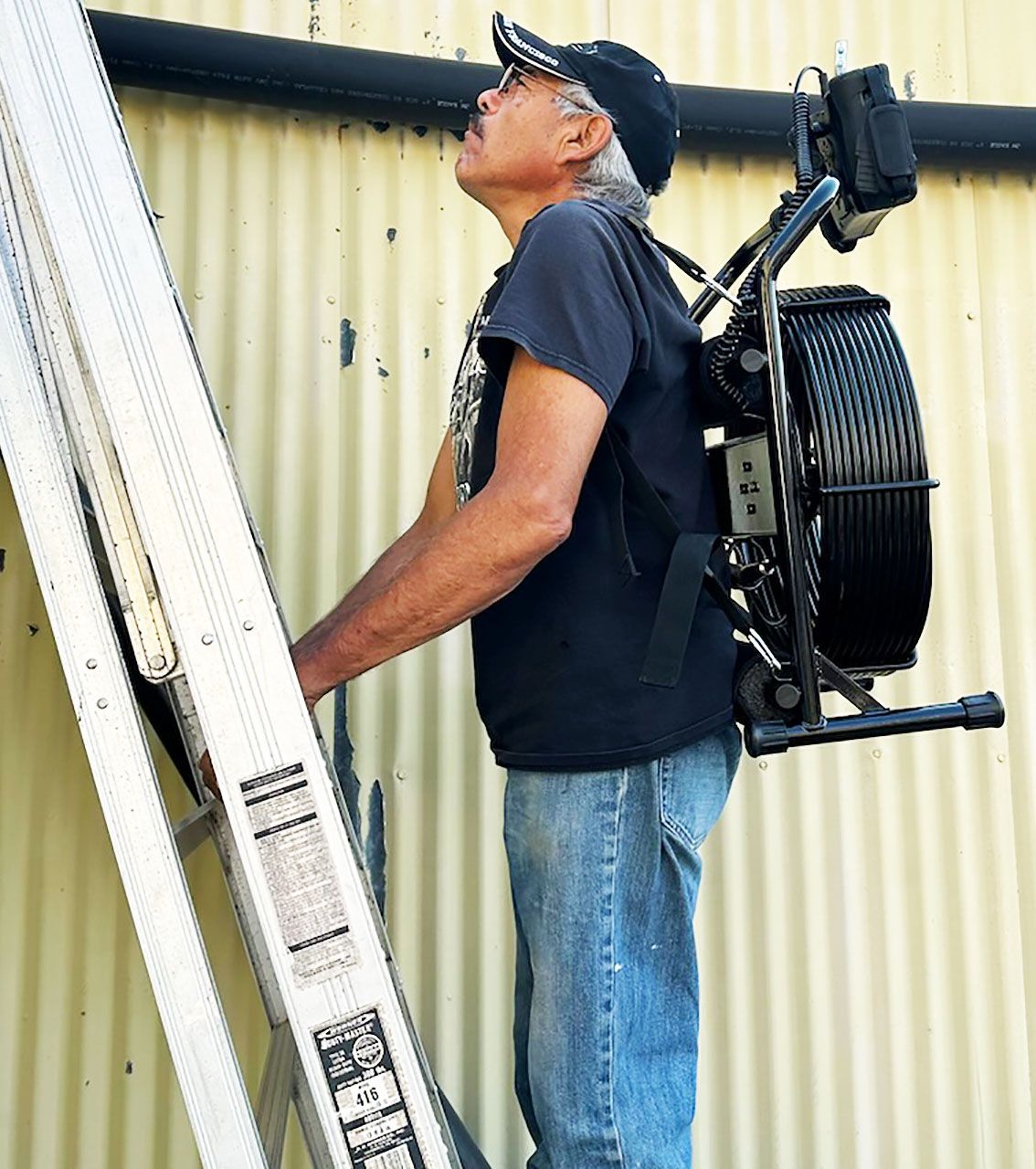

💼 Lightweight with built-in backpack straps
🏠 Roofs, crawlspaces, tight spots—take it anywhere

📊 TECH SPECS
Line Capacity: 2″ to 4″
Max Distance: 120 ft. (36 m), 140 ft. (43 m), or 180 ft. (55 m)
Depth Rating: 350 ft. (150 psi)
Display: 720 × 480 Color LCD (TAFT Monitor)
Lighting: High-Intensity White LEDs
Zoom: Digital In/Out
Camera Head: 1.3″ × 2″ (33 mm × 50.8 mm)
Push Cable: 10 mm diameter
Video Format: NTSC or PAL
Power Input: 100–240V AC → 5V DC
Ports: Mini USB 1.1, AV Out
Temp Range: 14°F to 122°F (−10°C to 50°C)
Weight: Approx. 29 lbs.

🧩 Optional Upgrades
📡 Locator Receiver

🛠️ Subtech Vision Technology – Product Warranty
We proudly stand behind our equipment. All Subtech sewer cameras and leak detection tools include a:
1-Year Limited Warranty
✔ Covers manufacturing defects in materials and workmanship
✔ Does not cover misuse, accidental damage, damage to the push cable, or unauthorized repairs
✔ Shipping may or may not be covered, depending on the nature of the issue and final evaluation by our team
✔ Typical repair turnaround: under 48 hours at our California facility

To file a warranty claim:
Email us at info@subtechmfg.com or call (209) 531-9716. Have your serial number and proof of purchase ready.
