Intruder Micro Complete System $3650 Includes additional 14mm fixed camera head and 30M of 4.8mm cable, perfect for sinks.

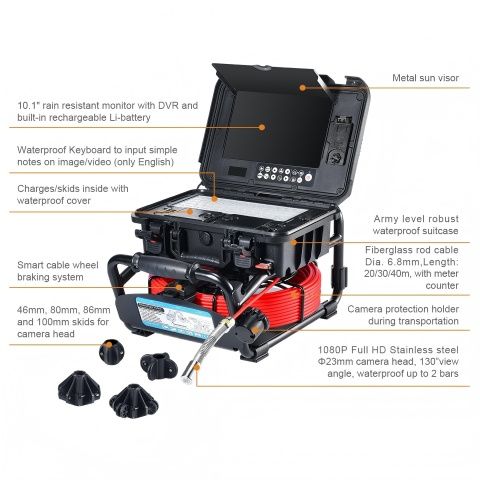

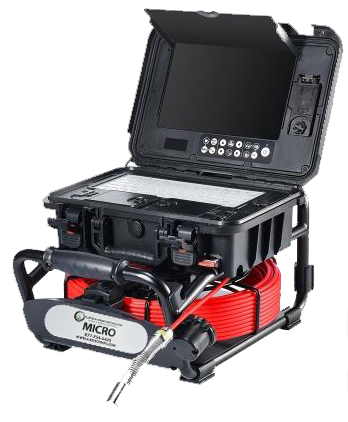

This compact inspection unit is built for smaller drain and line inspections where a full-size system isn’t practical. It features a 23 mm 1080P self-leveling camera head, 40 meters of 6.8 mm fiberglass push cable, a 10" color monitor, and a built-in 512 Hz sonde. The stiffer 6.8 mm push cable gives it the push needed to carry the camera the full length of the run while still handling bends in tighter lines.

We don’t manufacture this unit ourselves, but we’ve tested it thoroughly and stock replacement parts in-house. It’s repairable, supported, and ready to work. 1 Year Warranty (push cable is not warranted).

It’s a practical backup solution for tight-access work and pairs well with a full-size inspection system.

Specs:

Base Unit
🔴 Camera size: 23 mm x 51 mm (self leveling)
🔴 Camera total length: 155 mm
🔴 1/3" CMOS sensor
🔴 Resolution: AHD 1920 x 1080
🔴 View angle: 130°
🔴 Focus distance: 15 cm (approx.)
🔴 Depth of field: 20 cm (approx.)
🔴 Sapphire glass front lens
🔴 Waterproof to 20 m underwater (camera fixed on cable)
🔴 Shell material: #304 stainless steel
🔴 Lighting: built-in 15 white LEDs
🔴 Operating temperature: -10 to 50°C / 14 to 122°F
🔴 Storage temperature: -20 to 60°C / 4 to 140°F
🔴 40 m fiberglass rod cable
🔴 Push cable diameter: 6.8 mm
🔴 Cable material: fiberglass covered by PP
🔴 Smart braking system
🔴 10-inch 16:9 super-bright HD color LCD screen with rain-proof design
🔴 Resolution: 1024 x 600 pixels
🔴 Supports image mirror and flip
🔴 Video resolution: AHD 1080P / CVBS D1
🔴 Video encoding: H.264
🔴 Local sound recording
🔴 TV and audio output
🔴 On-screen date and time
🔴 On-screen meter/foot distance display (optional)
🔴 Supports SD memory cards up to 64 GB
🔴 Languages: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish
🔴 Power supply: DC 12V input
🔴 Battery capacity: 7.2V 6400mAh Li-ion battery
🔴 Power output: 6-12V DC, USB 5V
🔴 Work / charge time: 6 / 8 hours

Available Upgrades

🔴 40 m (130 ft) × 4.8 mm cable reel assembly (includes extra cable and reel)

Optional Accessories

🔴 Extra 23 mm camera head, self-leveling, with 512 Hz sonde

🔴 Extra 14 mm camera head, non-self-leveling, with 512 Hz sonde
