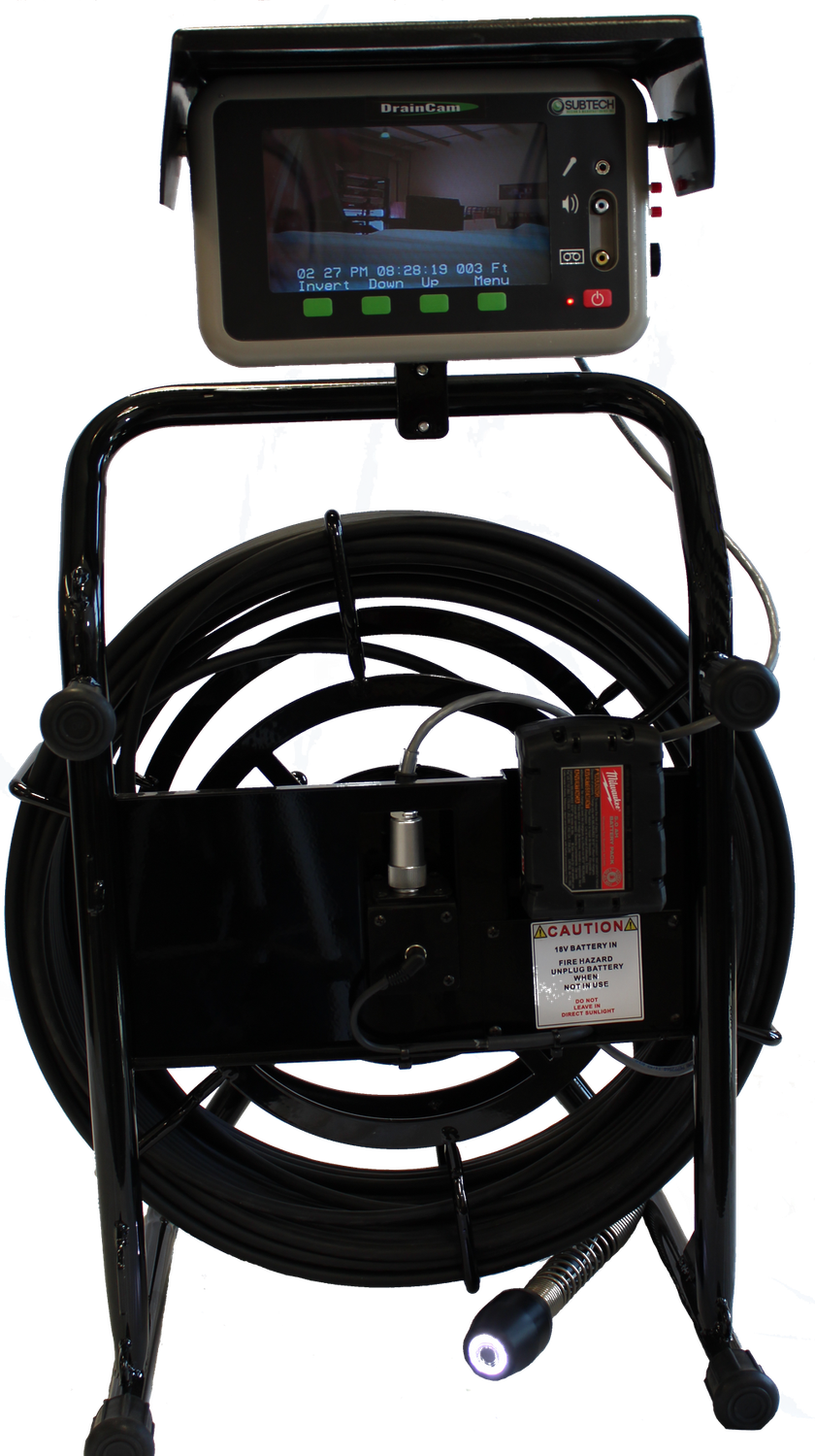

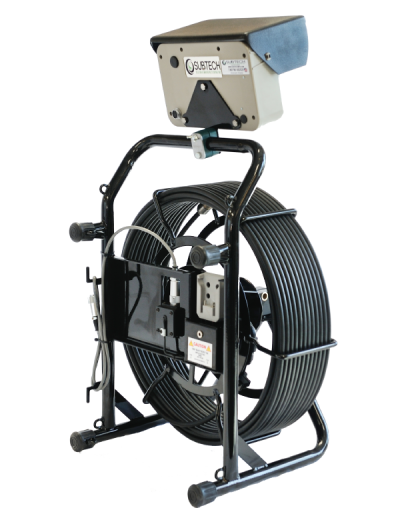

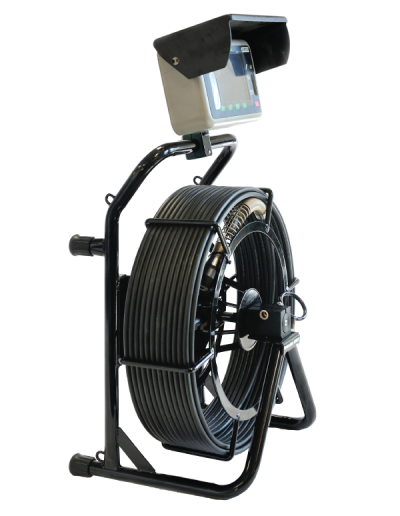

🔧 THE INTRUDER MINI SERIES – 200′
🔴 With Standard Mini Camera (Not Self-Leveling)

Compact • Durable • Built for Smaller Pipes

Built to Work, Priced to Move
A streamlined sewer inspection system ideal for:
✔️ Residential Plumbing
✔️ Smaller Lines and Tight Access
✔️ Field Techs Who Don’t Need Self-Leveling

Fully Equipped & Field Ready
🎥 Mini color camera with clear 7” LCD display
🧠 Built-in 512 Hz transmitter
🔊 Microphone, light control, picture inverter
📝 Text writer, footage counter, time/date overlay
🔋 18V battery receptacle (battery/charger not included)
📁 Built-in USB video recorder

📊 TECH SPECS
Line Capacity: 1.5″ to 6″
Max Distance: 200 ft. (61 m)
Depth Rating: 350 ft. (150 psi)
Resolution: 420 TVL
Pixels: 512 (H) × 492 (V)
Sensitivity: 0.3 Lux
Lighting: 16 High-Intensity White LEDs
Camera Head: 1.3″ × 2″ (33 mm × 50.8 mm)
Push Cable: 10 mm diameter
Video Format: NTSC
Power Input: 110V/60Hz AC, 12V DC
Temp Range: 14°F to 122°F (−10°C to 50°C)

🧩 Optional Upgrades
📡 Locator Receiver

---

🛠️ Subtech Vision Technology – Product Warranty
We proudly stand behind our equipment. All Subtech sewer cameras and leak detection tools include a:
1-Year Limited Warranty
✔ Covers manufacturing defects in materials and workmanship
✔ Does not cover misuse, accidental damage, damage to the push cable, or unauthorized repairs
✔ Shipping may or may not be covered, depending on the nature of the issue and final evaluation by our team
✔ Typical repair turnaround: under 48 hours at our California facility

To file a warranty claim:
Email us at info@subtechmfg.com or call (209) 531-9716. Have your serial number and proof of purchase ready.

Comparable in core performance to higher-end systems like RIDGID®, Gen-Ear®, and GenPodCam®, but offered at a much better value for contractors who don’t require self-leveling. The Mini Series is a serious upgrade over low-end options like Scout®, delivering full 200-foot push distance, built-in sonde transmitter, on-screen text writer, and USB video recording in a compact, durable, field-ready design.

Ideal for:

• Sewer camera inspections
• Plumbing and drain inspections
• Home inspections
• Underground pipe locating (with optional locator)
• Residential, commercial, and municipal pipe inspections
