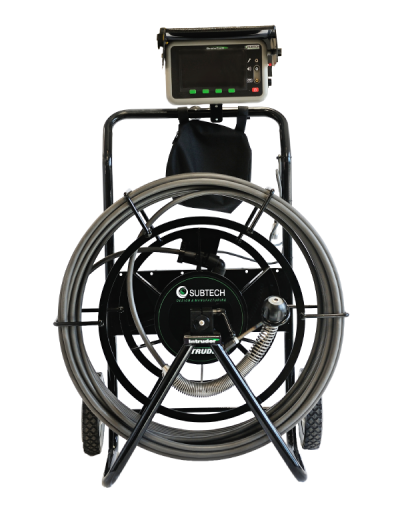

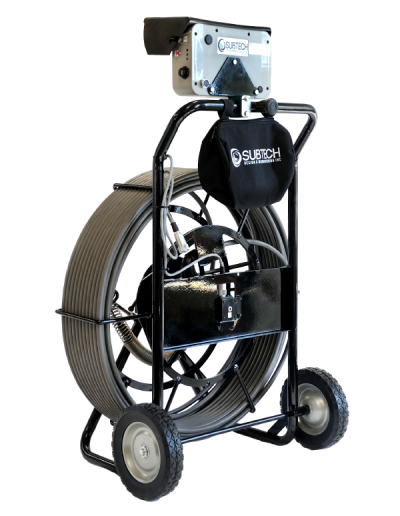

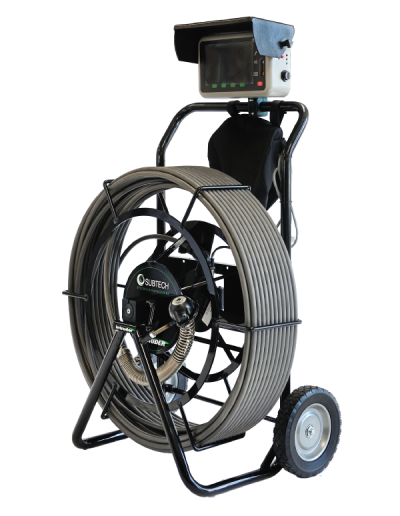

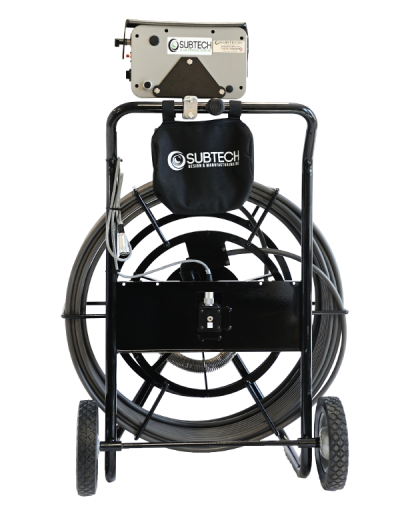

🔧 THE INTRUDER STANDARD SERIES – 200′
With Self-Leveling Camera
Larger Cart and Reel with Heavy-Duty 12mm Push Cable
Optional 300′ Cable Available – Call to Order

Heavy-Duty • Self-Leveling • Built for Larger Pipes

Precision and Power for Commercial-Grade Jobs
Engineered for long-distance runs and wide-diameter lines:
✔️ Sewer Contractors
✔️ Municipal & Industrial Inspections
✔️ Utility Crews and Service Techs

Fully Loaded System
🎥 1.6″ self-leveling camera with 28-LED lighting
🧠 Built-in 512 Hz transmitter
📏 200′ of 12mm push cable (option for 300′ available)
📝 Text writer, footage counter, time/date overlay
🔋 AC/DC operation with 18V battery receptacle (battery not included)
📁 Built-in USB video recorder
📲 Optional phone/tablet playback via Wi-Fi
🧲 Compatible with camera locator systems

📊 TECH SPECS
Line Capacity: 3″ to 12″ (7 cm to 30 cm)
Max Distance: 200′ (61 m) or up to 300′ (91 m)
Depth Rating: 350 ft. (150 psi)
Resolution: 420 TVL
Pixels: 512 (H) × 492 (V) [PAL: 512 (H) × 585 (V)]
Sensitivity: 0.3 Lux
Lighting: 28 High-Intensity White LEDs
Camera Head: 1.6″ × 1.4″ (41 mm × 36 mm)
Push Cable: 12 mm diameter
Video Format: NTSC
Power Input: 110V/60Hz AC, 12V DC
Temp Range: 14°F to 122°F (−10°C to 50°C)

🧩 Optional Upgrades
📡 Locator Receiver
📱 Phone/Tablet Playback Adapter (Wi-Fi)
🔁 Standard Camera Head (Non–Self-Leveling Option)
🔋 18V Battery Receptacle (Battery and Charger not included)

🛠️ Subtech Vision Technology – Product Warranty
We proudly stand behind our equipment. All Subtech sewer cameras and leak detection tools include a:
1-Year Limited Warranty
✔ Covers manufacturing defects in materials and workmanship
✔ Does not cover misuse, accidental damage, damage to the push cable, or unauthorized repairs
✔ Shipping may or may not be covered, depending on the nature of the issue and final evaluation by our team
✔ Typical repair turnaround: under 48 hours at our California facility

To file a warranty claim:
Email us at info@subtechmfg.com or call (209) 531-9716. Have your serial number and proof of purchase ready.
